Lynk&Co 09

Length*Width*Height [mm] 5042*1977*1780
Wheelbase [mm] 2984
Maximum Power [kW] 187
Body Structure 5-door 5-seater SUV
Top Speed [km/h] 215
Maximum Torque [N·m] 350
  • $36,173-$37,152
  • Prices are for reference only. For more information on colors and other details, feel free to contact us!

Contact Us

Share to
Parameter Configuration 24 MHEV 2.0TD T5 AWD Sport Edition 5-seater 24 models MHEV 2.0TD T5 AWD Global Edition 7-seater
Hide Identical Items
Highlight Different Parameters $36,173  $37,152
Standard Equipment Optional Equipment - None + Compare + Compare
  Get the Best Price Get the Lowest Price
Prices are for reference only, please contact us for specific prices
China official guide price $36,173  $37,152
Chongqing Reference Price Starting at $31,840 ↓$4,332 Starting at $32,819 ↓$4,332
Manufacturer Lynk & Co Lynk & Co
Class Mid-size SUV Mid-sized & Full-sized SUV
Energy Type Gasoline + 48V Mild Hybrid System Gasoline + 48V Mild Hybrid System
Environmental Standard China VI China VI
Time of Launch 2024/9/13 2024/4/23
Engine 2.0T 254hp L4 2.0T 254 horsepower L4
Maximum Power [kW] 187 187
Maximum Torque [N·m] 350 350
Transmission 8-Speed Automatic(AT) 8-Speed Automatic Transmission(AT)
Length * Width * Height [mm] 5042*1977*1780 5042*1977*1780
Body Structure 5-door 5-seater SUV 5-door 7-seater SUV
Top Speed [km/h] 215 215
Official 0-100km/h Acceleration Time [s] 8 8
WLTC Combined Fuel Consumption [L/100km] 9 9
NEDC Combined Fuel Consumption [L/100km] 8 -
Vehicle Warranty 5 years or 100,000 kilometers 5 years or 100,000 kilometers
Length [mm] 5042 5042
Width [mm] 1977 1977
Height [mm] 1780 1780
Wheelbase [mm] 2984 2984
Front Track Width [mm] 1680 1680
Rear Track Width [mm] 1684 1684
Door Opening Method Swing Doors Swing Doors
Number of Doors 5 5
Number of Seats 5 7
Approach Angle [°] 21 21
Departure Angle [°] 20 20
Full Load Minimum Ground Clearance [mm] 180 180
Empty Load Minimum Ground Clearance [mm] 221 221
Minimum Turning Radius [m] 6.15 6.15
Fuel Tank Capacity [L] 71 71
Official Trunk Capacity [L] 691-1522 269-862
Curb Weight [kg] 2120 2120
Full Load Weight [kg] 2735 2735
Production Architecture SPA SPA
Engine Model JLH-4G20TDC JLH-4G20TDC
Displacement [mL] 1969 1969
Displacement [L] 2 2
Intake Type Turbocharged Turbocharged
Engine Layout Transverse Transverse
Cylinder Arrangement L L
Number of Cylinders [cylinders] 4 4
Number of Valves per Cylinder [valves] 4 4
Compression Ratio 10.8 10.8
Valvetrain DOHC DOHC
Maximum Power [kW] 187 187
Maximum Horsepower [Ps] 254 254
Maximum Power Speed [rpm] 5500 5500
Maximum Torque [N·m] 350 350
Maximum Torque Speed [rpm] 1800-4800 1800-4800
Maximum Net Power [kW] 187 187
Fuel Grade 95 95 octane
Fuel Supply Method Direct Injection Direct Injection
Cylinder Head Material Aluminum Alloy Aluminum Alloy
Cylinder Block Material Aluminum Alloy Aluminum Alloy
Environmental Protection Standard China VI China VI

Transmission Description 8-Speed Automatic 8-Speed Automatic Transmission
Transmission Type Automatic(AT) Automatic Transmission(AT)
Number of Gears 8 8
Drive Type Front-Wheel Drive Front Wheel Drive
Four-Wheel Drive Type Full-Time Four-Wheel Drive Full Time Four Wheel Drive
Center Differential Structure Multi-Plate Clutch Multi-plate Clutch
Front Suspension Type Double Wishbone Independent Suspension Double Wishbone Independent Suspension
Rear Suspension Type Multi-Link Independent Suspension Multi-link Independent Suspension
Power Steering Type Electric Power Steering Electric Power Steering
Adjustable Suspension Function - -
Adjustable Suspension Type - -
Body Structure Body-on-frame Body-on-frame
Limited Slip Differential - -
Differential Lock - -
Front Brake Type ● Ventilated disc ● Ventilated disc
Rear Brake Type ● Ventilated disc ● Ventilated disc
Parking Brake Type Electronic parking brake Electronic parking brake
Front Tire Size ● 275/45 R20 ● 275/45 R20
Rear Tire Size ● 275/45 R20 ● 275/45 R20
Spare Tire ● Temporary spare ● Temporary spare
Spare Tire Placement ● Inside the trunk ● Inside the trunk
Anti-lock Braking System (ABS)
Brake Force Distribution (EBD/CBC, etc.)
Brake Assist (BA/EBA/BAS, etc.)
Traction Control (ASR/TCS/TRC, etc.)
Vehicle Stability Control (ESP/DSC/VSC, etc.)
Safety Belt Reminder ● Full vehicle ● Front two rows
Tire Pressure Monitoring ● Tire pressure monitoring ● Tire pressure display
Driver's Airbag
Front Passenger Airbag
First Row Side Airbags
Second Row Side Airbags - -
Side Curtain Airbags
Knee Airbag - -
Front Passenger Seat Cushion Airbag - -
Rear Seat Safety Belt Airbags - -
Rear Seat Anti-Slip Airbags - -
Central Airbag - -
Second Row Forward Facing Airbags - -
Child Seat Anchorage
Passive Pedestrian Protection - -
Run-flat Tires - -
Front Parking Sensors
Rear Parking Sensors
Rear Cross Traffic Alert
Door Collision Warning
Driving Assistance Camera ● 360-degree panorama view ● 360-degree panorama view
● Blind spot monitoring ● Side blind spot imaging
Underbody View
Cruise Control ● Full-speed adaptive cruise control ● Full-speed adaptive cruise control
Drive Mode Selection ● Sport ● Sport
● Economy ● Economy
● Standard/Comfort ● Standard/Comfort
● Off-road ● Off-road
● Snow ● Snow
● Custom/Personalized ● Custom/Personalized
Fatigue Reminder
Automatic Parking
Remote Parking - -
Remote Summon - -
Engine Start/Stop
Auto Parking Brake
Hill Start Assist
Hill Descent Control
Night Vision System - -
Variable Steering Ratio - -
Active Front Steering System - -
Wading Sensing System - -
Rollover Prevention System
Lane Change Assist (BSM/BSD)
Lane Departure Warning System (LDWS)
Lane Keep Assist (LKAS)
Lane Centering Assist
Traffic Sign Recognition
Forward Collision Warning
Rear Collision Warning
Active Braking
Autonomous Lane Changing Assistance
Ramp Merge Assist
Highway Driving Assist
Parking Assist - -
Driving Assistance Level ● L2 ● L2
Driver Assistance System ● Lynk Co-Pilot ● Lynk Co-Pilot
Millimeter Wave Radar ● 5 units ● 5
Ultrasonic Radar ● Front 6/Rear 6 ● Front 6/Rear 6
Front Sensing Camera Type Single-lens Monocular
Environment Sensing Camera 1 piece 1 piece
Surround View Camera 4 pieces 4 pieces
Interior Camera 1 piece 1 piece
Sunroof Type Panoramic sunroof Panoramic Sunroof
Sport Appearance Package - -
Electric Spoiler - -
Wheel Material Aluminum alloy Aluminum Alloy
Front Door Opening Method Mechanical handle Mechanical Handle
Rear Door Opening Method Mechanical handle Mechanical Handle
Power Sliding Door - -
Automatic Door Opening - -
Frameless Door - -
Sliding Door - -
Roof Rack
Key Type Remote key Remote Key
Bluetooth key Bluetooth Key
NFC/RFID key NFC/RFID Key
Keyless Start
Keyless Entry First row First Row
Hidden Electric Door Handle
Active Grille Shutter - -
Electric Tailgate
Tailgate Memory Position
Hands-Free Tailgate
Tailgate Glass Independent Open - -
Side Step - -
Steering Wheel Material Leather Leather
Steering Wheel Adjustment Electrically adjustable up/down and forward/backward Electrically Adjustable Up and Down + Forward and Backward
Steering wheel memory Steering Wheel Memory
Shifting Type Electronic gear shift Electronic Gearshift
Multifunction Steering Wheel
Steering Wheel Shift - -
Steering Wheel Heating
Instrument Cluster Display Colorful Color
Full LCD Dashboard
Instrument Screen Size [inches] 12.3 12.3
HUD Head-up Display
Built-in Dash Cam
Wireless Phone Charging First row First Row
ETC Device - -
Active Noise Cancellation
Electric Adjustable Pedals - -
Seat Material Leather Leather
Sport Style Seats
Seat Layout 2+3 2+3+2
Driver Seat Electric Adjustment Memory electric adjustment Memory Electric Adjustment
Passenger Seat Electric Adjustment Electric adjustment Electric Adjustment
Driver Seat Adjustment Method Front/rear adjustment Front and Back Adjustment
Backrest adjustment Backrest Adjustment
Height adjustment (4-way) Height Adjustment (4-way)
Lumbar adjustment (4-way) Lumbar Adjustment (4-way)
Leg rest adjustment Leg Rest Adjustment
Side support Side Support
Passenger Seat Adjustment Method Front/rear adjustment Front and Back Adjustment
Backrest adjustment Backrest Adjustment
Height adjustment (4-way) Height Adjustment (4-way)
Lumbar adjustment (4-way) Lumbar Adjustment (4-way)
Leg rest adjustment Leg Rest Adjustment
Side support Side Support
First Row Seat Functions Heating Heating
Ventilation Ventilation
Massage Massage
Boss Key
Second Row Seat Electric Adjustment - -
Second Row Seat Adjustment Method Front/rear adjustment Front and Back Adjustment
Backrest adjustment Backrest Adjustment
Second Row Seat Functions Heating ● Heating
Center Console Armrest First Row ● First row
  Second Row ● Second row
Rear Seat Reclining Method Proportional Reclining ● Proportional Reclining
Rear Seat Electric Recline - ● Third row
Rear Cup Holder Second Row ● Second row
- ● Third row
Heated/Cooled Cup Holder - -
Rear Folding Table - -
Center Console Color Screen Touchscreen LCD ● Touchscreen LCD
Center Console Screen Size [inches] 12 ● 12
Center Console Screen Material LCD ● LCD
Center Console Screen Resolution [px] 1920 x 1080 ● 1920 x 1080
Sub-screen Size [inches] 6 ● 6
Passenger Screen - -
Vehicle System LYNK OS N LYNK OS N
Vehicle Chip Qualcomm Snapdragon 8155 Qualcomm Snapdragon 8155
Vehicle System Memory [GB] 12 ● 12
Vehicle System Storage [GB] 128 ● 128
Vehicle System Network 5G ● 5G
OTA Upgrade Over-The-Air Updates ● Over-the-air updates
Vehicle WiFi Function WiFi Connection ● WiFi Connection
WiFi Hotspot ● WiFi Hotspot
AR Real-world Navigation -
Vehicle Navigation Map AutoNavi (Gaode) ● AutoNavi (Gaode)
Baidu ● Baidu Maps
V2X Communication - -
Roadside Assistance Call -
Bluetooth/Vehicle Phone -
Smartphone Integration/Mirroring Original Factory Interconnection/Mirroring ● Original Manufacturer Connectivity/Mirroring
Supports HUAWEI HiCar ● Supports HUAWEI HiCar
Supports Flyme Link ● Supports Flyme Link
Voice Assistant Wake-up Word Hello, Lynk & Co. ● Hi, Lynk & Co
Voice Zone Wake-up First Row ● First row
Second Row ● Second row
Voice Wake-up Free -
Voice Continuous Recognition -
Voice Recognition Control Function Multimedia System ● Multimedia System
Navigation ● Navigation
Phone ● Phone
Air Conditioning ● Air Conditioning
Sunroof ● Sunroof
Gesture Control - -
Facial Recognition -
Remote Control Function Door Control ● Door Control
Vehicle Start ● Vehicle Start
Air Conditioning Control ● Air Conditioning Control
Vehicle Status Query/Diagnosis ● Vehicle Status Query/Diagnosis
Vehicle Positioning/Car Finding ● Vehicle Location/Find Car
Vehicle APP Application Market -
Vehicle CD/DVD - -
Multimedia/Charging Interface USB ● USB
Type-C ● Type-C
USB/Type-C Port Quantity 2 in Front/2 in Rear ● 2 in the front row / 3 in the back row
In-Car Entertainment Features Karaoke ● Karaoke
Rear Control Multimedia - -
Cabin 220V/230V Power Supply - -
Trunk Power Outlet 12V ● 12V
Audio Brand BOSE ● BOSE
Speaker Quantity 14 ● 14
Low Beam Light Source LED ● LED
High Beam Light Source LED ● LED
Lighting Special Features Matrix ● Matrix
LED Daytime Running Lights -
Headlight Function Height Adjustment Height Adjustment
Automatic opening and closing Automatic Open/Close
Adaptive high/low beam Adaptive Headlights
Automatic steering Automatic Steering
Delayed shutdown Delayed Shutdown
Rain and fog mode Rain/Fog Mode
Turn Assist Lights - -
Front Fog Lights - -
Headlight Cleaning Device - -
Ambient Lighting Multi-color Multi-color

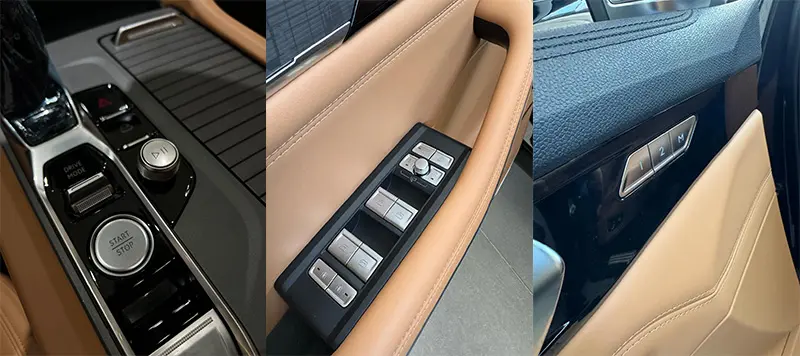

Front Row Electric Windows
Second Row Electric Windows
Window One-Touch Up/Down ● Whole vehicle All-around
Window Anti-Trap Feature ● Whole vehicle All-around
Multi-Layer Noise-Reducing Glass ● Whole vehicle All-around
Outer Rearview Mirror Features Electric adjustment Electric Adjustment
Rearview mirror heating Rearview Mirror Heating
Electric folding Electric Folding
Rearview mirror memory Rearview Mirror Memory
Automatic down翻 when reversing Automatic Tilt-down when Reversing
Automatic folding when locking Automatic Folding when Locking
Automatic anti-dazzle Automatic Anti-glare
Inner Rearview Mirror Features Automatic anti-dazzle Automatic Anti-glare
Rear Side Privacy Glass
Rear Side Sunshades Manual Manual
Rear Windshield Sunshade - -
Makeup Mirror Driver side + light Driver Side + Light
Passenger side + light Passenger Side + Light
Rain-Sensing Wiper Function Rain-sensing Rain-sensing Wipers
Rear Wiper
Heated Windshield Washers - -
First Row Air Conditioning Dual-zone automatic air conditioning Dual-zone Automatic Air Conditioning
Second Row Air Conditioning Dual-zone automatic air conditioning Dual-zone Automatic Air Conditioning
Third Row Air Conditioning - Air Outlet
Air Quality Monitoring
In-Cabin PM2.5 Filter
Car Air Purifier
Negative Ion Generator - -
Fragrance System
Car Refrigerator - -

CONTACT US

Chongqing Hengda Information Technology Co., Ltd.

Blues +86 187 2585 6466
Tingting +86 185 8296 9696
Kevin +86 159 0230 8700
5, 14-2, Building 8, No. 16 Qixia Road, Yuanyang Street, Liangjiang New District, Chongqing
